WA Series Indoor LED Display

Innovative Product for Indoor Solution

  • Module Size/mm: 250 x 250
  • Cabinet Size: Custom size
  • Cabinet Weight: 24kg/m²
  • IP Rating: IP31
  • Refresh Frequency/Hz: 3840 Hz
  • Operating Temperature: -40℃~+60℃
Quote Now Next

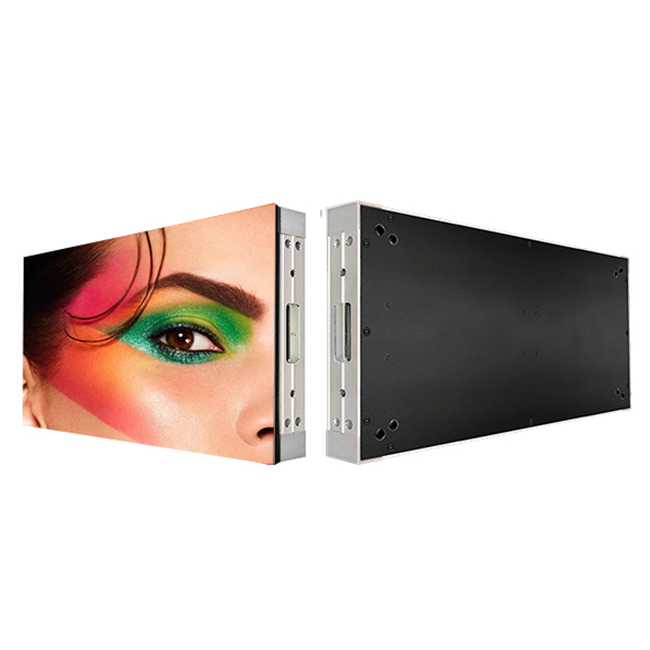

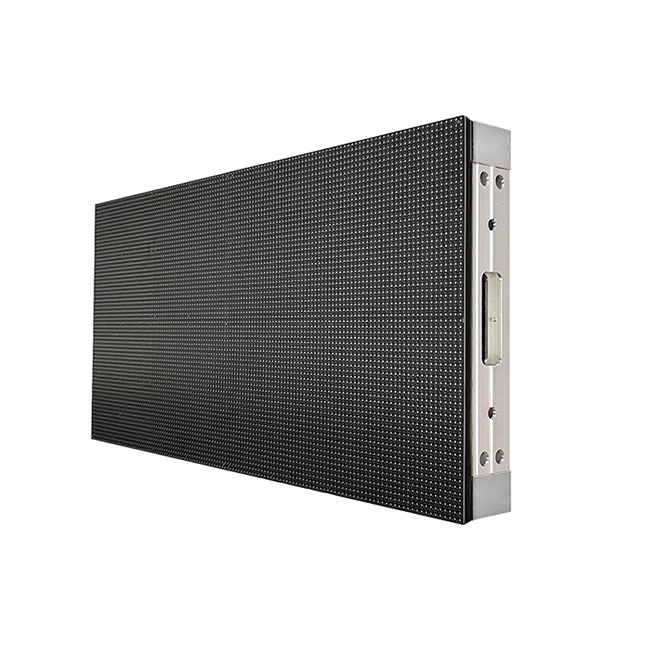

WA Series Indoor LED Display
WA Series Indoor LED Display
WA Series Indoor LED Display
  • Features
  • Specifications
  • Download
  • Cases

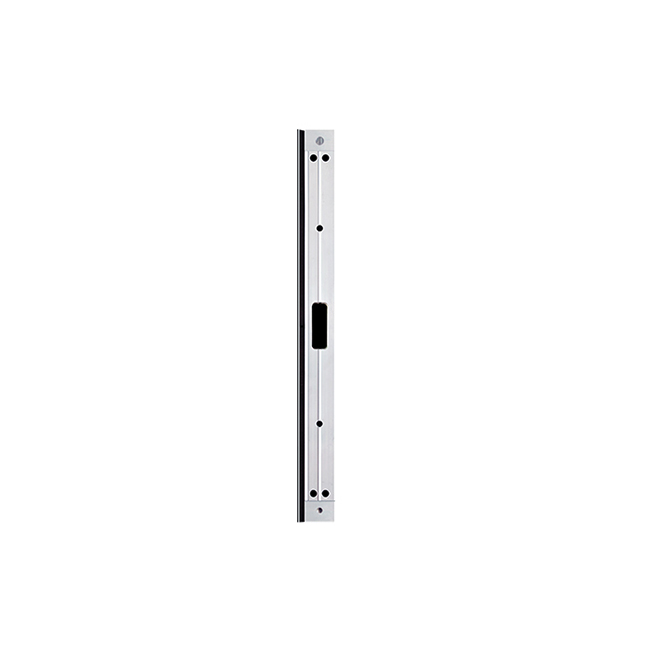

Way to install

Totally front installation without
any structure and maintenance
space backside to save structure
cost a lot

Custom size

The backside aluminum color can be
customzied accoring to your logo.
Silver and black color is the most popular

Support the arc

Right angle design to well achieve
your creativity

Pixel Pitch 2.6mm 2.9mm 3.9mm 4.8mm
LED Configuration SMD2121 SMD2121 SMD2121 SMD2121
Pixel Density/sqm 147456 dots 112896 dots 65536 dots 43264 dots
Module Size/mm 250 x 250 250 x 250 250 x 250mm 250 x 250
Module Resolution 96 x 96 dots 84 x 84dots 64 x 64 dots 52 x 52 dots
Cabinet  Size 500 x 500 mm           /1000 x 500mm 500 x 500 mm                  /1000 x 500mm 500 x 500 mm                  /1000 x 500mm 500 x 500 mm                  /1000 x 500mm
Cabinet Resolution 192x192dots

384x192dots

 168x168dots

336x168dots

 128x128dots

256x128dots

 104x104dots

208x104dots
Cabinet Weight 6kg/12kg 6kg/12kg 6kg/12kg 6kg/12kg
Cabinet Thickness 55mm 55mm 55mm 55mm
IP Rating IP31 IP31 IP45 IP43
Brightness /sqm 1000 nits 1200 nits 1200 nits 1200 nits
Scan 1/32S 1/28S 1/16S 1/13S
View Angle/° 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V)
Gray Scale/bit 16 bit 16 bit 16 bit 16 bit
Max. Power Consumption/W 650W/sqm 650W/sqm 650W/sqm 650W/sqm
Ave. Power Consumption/W 195W/sqm 195W/sqm 195W/sqm 195W/sqm
Refresh Frequency/Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz
Operating Power AC 96~242V 50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100,000Hours



document download
Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Indoor transparent screen P3.9-7.8 National star lamp 5000 brightness
  • Location:Russia
  • Pixel pitch:P3.91
  • Size:45 square
  • Time:2022
Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display
  • Location:Austria
  • Pixel pitch:P2.6
  • Size:3 sets W3x H1.5m,2 sets W1x H1.5m
  • Time:2022
Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall
  • Location:Japan
  • Pixel pitch:P2.9
  • Size:30pcs
  • Time:2022
America Stadium Score 50.4feetx 25.2feet P10 LED Display

America Stadium Score 50.4feetx 25.2feet P10 LED Display

American Stadium Score 50.4feetx 25.2feet P10 LED Display
  • Location: America
  • Pixel pitch:P10
  • Size: 50.4feetx 25.2feet
  • Time:2021
Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display
  • Location:Korea
  • Pixel pitch:P1.5
  • Size: 5760x2560mm
  • Time:2022
Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display
  • Location:Canada
  • Pixel pitch:P3.91
  • Size:75sqm
  • Time:2021
