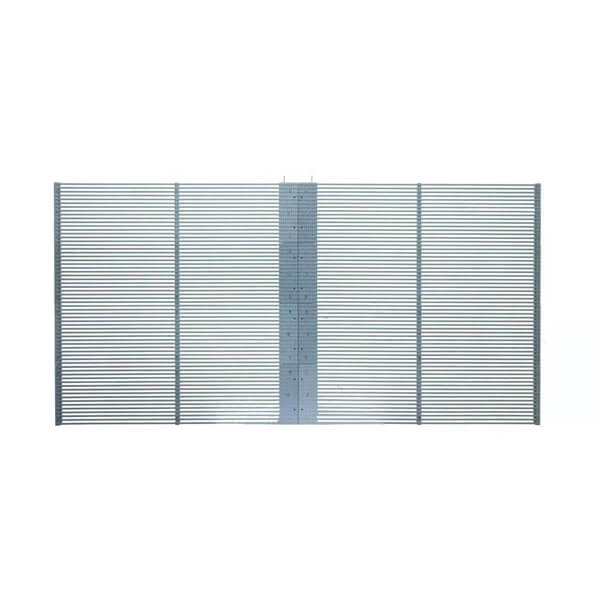

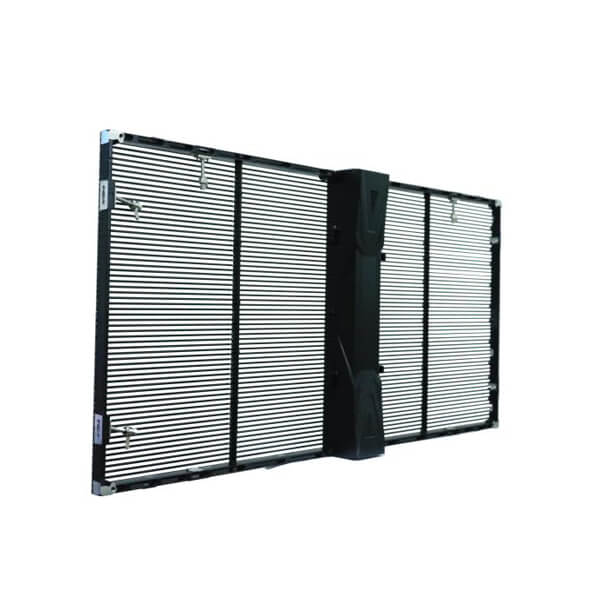

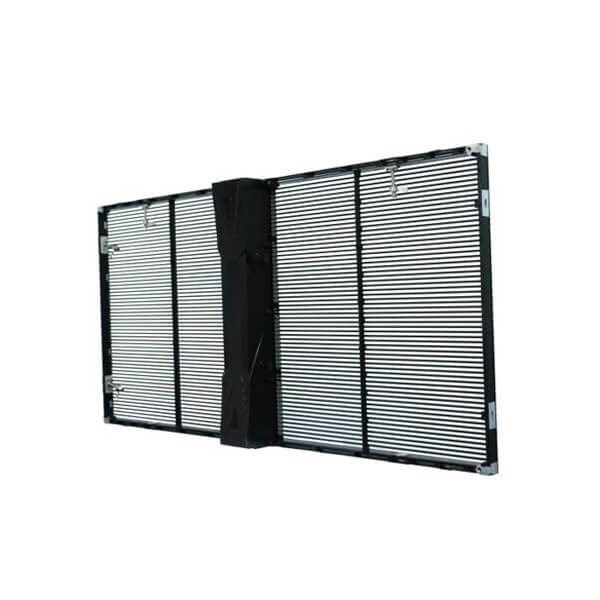

TP Series Transparent LED Display

Pixel Density/sqm: 32768 dots
Module Size/mm: 500 x 125
Cabinet Size: 1000 x 1000mm
Cabinet Weight: 12 Kg
Refresh Frequency/Hz: 1920 Hz
Operating Temperature: -40℃~+60℃

Cost saving

Steel structure cost, 70% save
Labor cost, 80% save
Shipment cost, 75% save
Maintenance and operation cost, 80% save
Electricity cost, 70% save

Size customization available

This product unit panel size can well
customize according to real window/sitesize/
situation to make it 100% suit with buildings

Pixel Pitch	3.91-7.81mm	3.91-7.81mm	3.91-7.81mm	3.91-7.81mm	7.8-7.9mm	7.8-7.9mm
LED Configuration	SMD2121	SMD1921	SMD2020	SMD1921	SMD2020	SMD1921
Pixel Density/sqm	32768 dots	32768 dots	32768 dots	32768 dots	32768 dots	32768 dots
Module Size/mm	500 x 125	500 x 125	500 x 125	500 x 125	500 x 125	500 x 125
Cabinet Size	1000 x 1000 mm	1000 x 1000 mm	1000 x 1000 mm	1000 x 1000 mm	1000 x 1000 mm	1000 x 1000 mm
Cabinet Resolution	256×64 dots	256×64 dots	256×64 dots	256×64 dots	256×64 dots	256×64 dots
Cabinet Weight	12 Kg	12 Kg	12 Kg	12 Kg	12 Kg	12 Kg
Brightness /sqm	1000 to 1200 nits	3000 to 3500 nits	5000 to 6000 nits	1000 to 1500 nits	3500-4200 nits	2500-3000 nits
View Angle/°	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Scan	1/8S	1/8S	1/7S	1/7S	1/7S	1/7S
Gray Scale/bit	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit
Max. Power Consumption/W	680W/sqm	680W/sqm	680W/sqm	680W/sqm	650W/sqm	650W/sqm
Ave. Power Consumption/W	235W/sqm	235W/sqm	235W/sqm	235W/sqm	225W/sqm	225W/sqm
Refresh Frequency/Hz	1920 Hz	1920 Hz	1920 Hz	1920 Hz	1920 Hz	1920 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40℃~+60℃
