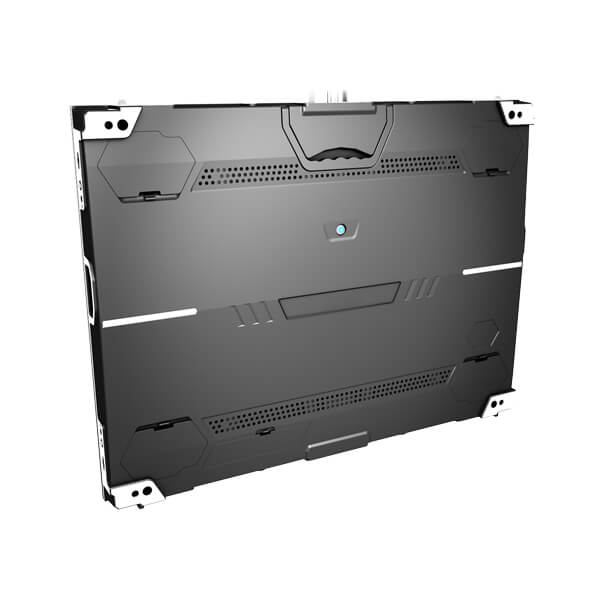

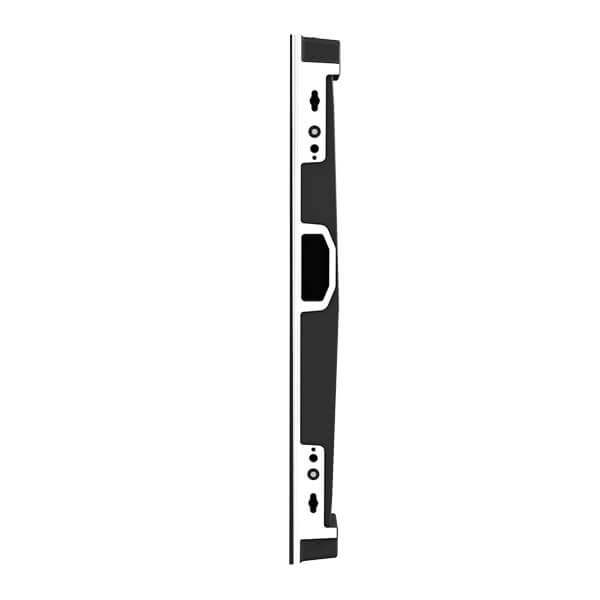

SM Series LED Display

UHD INDOOR FULL COLOR LED DISPLAY

  • LED Configuration: SMD1212
  • Module Size/mm: 320 x 160
  • Cabinet Size: 640x480x49mm
  • Cabinet Weight: 7.5Kg
  • IP Rating: IP20
  • Operating Temperature: -40℃~+60℃
Quote Now Next
SM Series LED Display
SM Series LED Display
SM Series LED Display
  • Features
  • Specifications
  • Download
  • Cases

Maintenance mode

Totally front maintenance without
any structure
Noiseless design, keep silence
during working

Dual Backup System

Power supply,signal cable backup available

Support the arc

Customized for 90 degree

Available for inner curve

Pixel Pitch 1.25mm 1.568mm 1.667mm 1.839mm 2.5mm
LED Configuration SMD1212 SMD1212 SMD1212 SMD1515 SMD2121
Pixel Density/sqm 640000 dots 406406 dots 360000 dots 295664 dots 160000 dots
Module Size/mm 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160
Module Resolution 256×128 dots 204 x 102 dots 192 x 96 dots 174 x 87 dots 128 x 64 dots
Cabinet  Size 640x480x49mm 640x480x49mm 640x480x49mm 640x480x49mm 640x480x49mm
Cabinet Resolution 512×384 dots 408 x 306 dots 384 x 192 dots 348 x 261 dots 256 x 128 dots
Cabinet Weight 7.5Kg 7.5Kg 7.5Kg 7.5Kg 7.5Kg
IP Rating IP20 IP20 IP20 IP20 IP20
Brightness /sqm 600 nits 800 nits 800 nits 1000 nits 1000 nits
View Angle/° 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V)
Gray Scale/bit 16 bit 16  bit 16  bit 16  bit 16  bit
Max. Power Consumption/W 600W/sqm 600W/sqm 600W/sqm 600W/sqm 600W/sqm
Ave. Power Consumption/W 180W/sqm 180W/sqm 180W/sqm 180W/sqm 180W/sqm
Refresh Frequency/Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz ≥3840 Hz
Operating Power AC110/240±10%  50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100,000Hours



Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Indoor transparent screen P3.9-7.8 National star lamp 5000 brightness
  • Location:Russia
  • Pixel pitch:P3.91
  • Size:45 square
  • Time:2022
Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display
  • Location:Austria
  • Pixel pitch:P2.6
  • Size:3 sets W3x H1.5m,2 sets W1x H1.5m
  • Time:2022
Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall
  • Location:Japan
  • Pixel pitch:P2.9
  • Size:30pcs
  • Time:2022
America Stadium Score 50.4feetx 25.2feet P10 LED Display

America Stadium Score 50.4feetx 25.2feet P10 LED Display

American Stadium Score 50.4feetx 25.2feet P10 LED Display
  • Location: America
  • Pixel pitch:P10
  • Size: 50.4feetx 25.2feet
  • Time:2021
Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display
  • Location:Korea
  • Pixel pitch:P1.5
  • Size: 5760x2560mm
  • Time:2022
Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display
  • Location:Canada
  • Pixel pitch:P3.91
  • Size:75sqm
  • Time:2021
