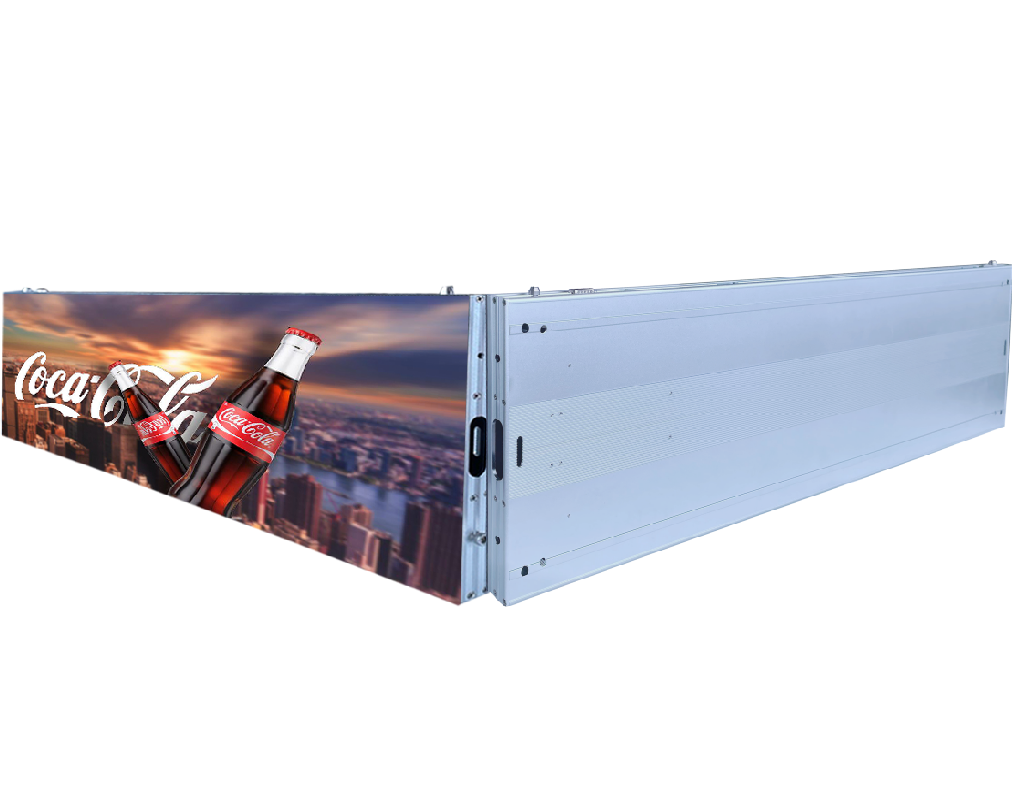

WS Series LED Display

Superb slim and cable free,born for high-end commercial screen

Quote Now Next

Ultra thin and light

Three size optional: W1250xH250x28mm,W1000xH250x28mm,W750x250x28mm,it can assemble Multiple of 0.25m,0.5m,0.75m,1m

28mm Thickness

20kg/㎡Weight

Integrated modular design to well achieve real PLUG AND PLAY smart operation

Wireless connection between cabinets, more convenient and safe

Simple inner structure,easy maintenance

Connector failure rate reduced by 80%

High precision material and process achieve 0.05mm precision, far higher than other competitive products 0.24mm

Resolution:1920x1080dots

Size: W3000xH1687.5mm

Golden Ratio: 16:9

Pixel Pitch: P1.5

Thickness:28mm

Content Input:Wi-Fi,USB,HDMI,Lan

Touch screen optional

Pixel Pitch	1.9mm	2.6mm	3.9mm	2.9mm	3.9mm	4.8mm
LED Configuration	SMD1515	SMD2121	SMD2121	SMD1415	SMD1921	SMD1921
Application	Indoor	Indoor	Indoor	Outdoor	Outdoor	Outdoor
Pixel Density/sqm	262144 dots	147456 dots	65536 dots	112896 dots	65536 dots	43264 dots
Module Size/mm	250 x 250	250 x 250	250 x 250	250 x 250	250 x 250	250 x 250
Module Resolution	128×128 dots	100 x 100 dots	64 x 64 dots	84 x 84 dots	64 x 64 dots	52 x 52 dots
Cabinet Size	500 x 500 mm	500 x 500 mm	500 x 500 mm	500 x 500 mm	500 x 500 mm	500 x 500 mm
Cabinet Resolution	256×256 dots	192 x 192 dots	128 x 128 dots	168 x 168 dots	128 x 128 dots	104 x 104 dots
Cabinet Weight	7.5Kg	7.5Kg	7.5Kg	7.5Kg	7.5Kg	7.5Kg
IP Rating	IP30	IP31	IP31	IP45	IP54	IP54
Scan	1/32S	1/32S	1/16S	1/28S	1/16S	1/13S
Brightness /sqm	900 nits	1200 nits	1200 nits	4000-4500 nits	4500-5000 nits	4500 -5000nits
View Angle/°	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Gray Scale/bit	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit
Max. Power Consumption/W	650 W/sqm	650 W/sqm	650 W/sqm	650 W/sqm	650 W/sqm	650 W/sqm
Ave. Power Consumption/W	216 W/sqm	216 W/sqm	216 W/sqm	216 W/sqm	216 W/sqm	216 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40℃~+60℃
Operating Humidity	10~90%RH
Operating Life	100,000Hours
