RB Series Stage LED Display

The most popular STOCK stage led screen that you can't missl

  • Module Size: 250 x 250 mm
  • Cabinet Size: 500 x 500/500 x 1000 mm
  • Cabinet Weight: 7.5kg/14kg
  • View Angle： 160°/140°（H/V）
  • Refresh Frequency: 3840Hz
  • Operating Temperature: -40°C~+60°C
Quote Now Next
RB Series Stage LED Display
RB Series Stage LED Display
RB Series Stage LED Display
RB Series Stage LED Display
  • Features
  • Specifications
  • Download
  • Cases

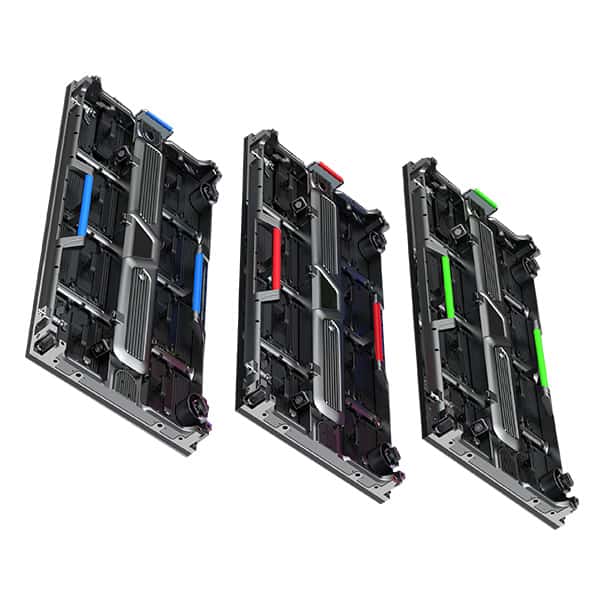

Customized color

Super slim & Light: 12.5kg/pcsign 83mm

Compatible cabinet for different pixel pitch

P2.604,P2.97,P3.91,P4.81 avaible

High Refresh: 3840Hz

No Scanning line,No jitter

Triple anti-collision design

Better collision prevention

Indoor and Outdoor Common Use

Outdoor screen can use for indoor event

Various Installation and splicing

Creative Stage: Your Idea,We realize

One-Stop Solution For Your Events

Professional and efficient purchase team,will help you simplify the purchasing
process,and make your business become more easy and high efficence.

Curved Solution

Angles 0°±2.5°±5°

Details

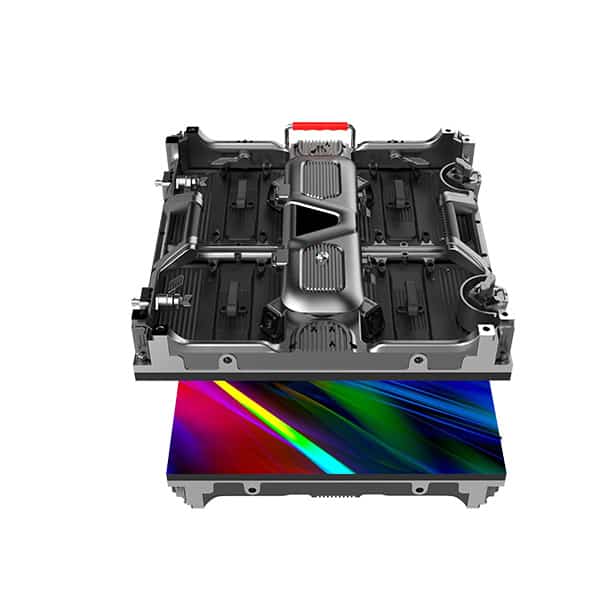

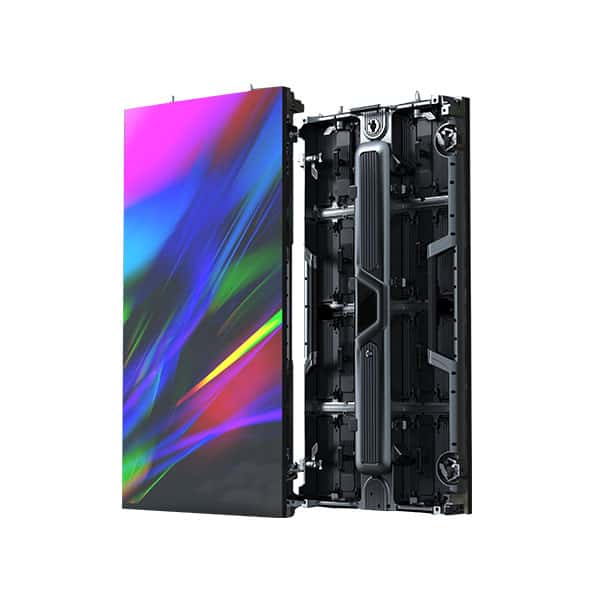

Cabinet details

Application

Outdoor Rental Project reference

Outdoor

More project reference

Indoor Rental Project reference

Indoor

More project reference

Accessories

Pixel Pitch 2.6mm 2.9mm 3.9mm P2.9 3.9mm 4.8mm
LED Configuration SMD2121 SMD2121 SMD2121 SMD1415 SMD1921 SMD1921
Application Indoor Indoor Indoor Outdoor Outdoor Outdoor
Pixel Density/sqm 262144 dots 160000 dots 65536 dots 160000 dots 65536 dots 43264 dots
Module Size/mm 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250
Module Resolution 128×128 dots 84 x 84dots 64 x 64 dots 84 x 84dots 64 x 64 dots 52 x 52 dots
Cabinet  Size 500 x 1000 mm 500 x 1000 mm 500 x 1000 mm 500 x 1000 mm 500 x 1000 mm 500 x 1000 mm
Cabinet Resolution 256×384 dots 168 x 336dots 128 x 256 dots 168 x 336dots 128 x 256 dots 104 x 208 dots
Cabinet Weight 14g 14Kg 14Kg 14Kg 14Kg 14Kg
IP Rating IP31 IP31 IP45 IP45 IP54 IP54
Scan 1/32S 1/28S 1/16S 1/28S 1/16S 1/13S
Brightness /sqm 1000 nits 1000 nits 1200 nits 4500-5000nits 4500-5000 nits 4500-5000 nits
View Angle/° 120°/ 100°(H/V) 120°/ 100°(H/V) 120°/ 100°(H/V) 120°/ 100°(H/V） 120°/ 100°(H/V) 120°/ 100°(H/V)
Gray Scale/bit 16 bit 16 bit 16 bit 16bits 16 bit 16 bit
Max. Power Consumption/W 650 W/sqm 650 W/sqm 650 W/sqm 650 W/sqm 650 W/sqm 650 W/sqm
Ave. Power Consumption/W 216 W/sqm 216 W/sqm 216 W/sqm 216 W/sqm 216 W/sqm 216 W/sqm
Refresh Frequency/Hz 3840Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz
Operating Power AC 96~242V 50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100,000Hours



Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Indoor transparent screen P3.9-7.8 National star lamp 5000 brightness
  • Location:Russia
  • Pixel pitch:P3.91
  • Size:45 square
  • Time:2022
Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display
  • Location:Austria
  • Pixel pitch:P2.6
  • Size:3 sets W3x H1.5m,2 sets W1x H1.5m
  • Time:2022
Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall
  • Location:Japan
  • Pixel pitch:P2.9
  • Size:30pcs
  • Time:2022
America Stadium Score 50.4feetx 25.2feet P10 LED Display

America Stadium Score 50.4feetx 25.2feet P10 LED Display

American Stadium Score 50.4feetx 25.2feet P10 LED Display
  • Location: America
  • Pixel pitch:P10
  • Size: 50.4feetx 25.2feet
  • Time:2021
Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display

Korea GOB P1.5 indoor conference LED display
  • Location:Korea
  • Pixel pitch:P1.5
  • Size: 5760x2560mm
  • Time:2022
Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display
  • Location:Canada
  • Pixel pitch:P3.91
  • Size:75sqm
  • Time:2021
